High-end 3-way ceiling speakers with carbon dome tweeters, Continuum midrange drivers and Aerofoil woofers

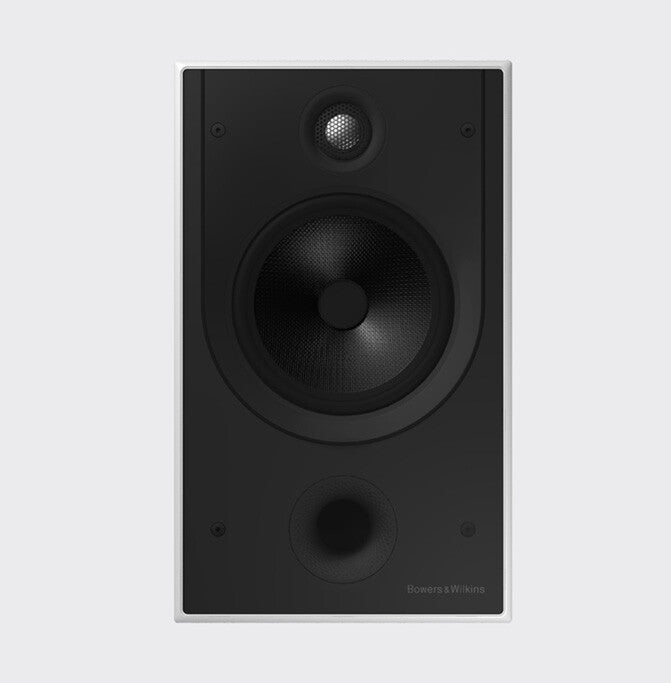

Bowers & Wilkins CWM8.5 D
The Bowers & Wilkins CWM8.5 D is a two-way in-wall speaker. It offers exceptionally high performance for a compact speaker. It features a decoupled diamond dome tweeter and a single 7-inch Continuum mid-bass driver with anti-resonance plug. For optimal discretion during installation, the Continuum membrane is painted dark.
Technical data
Description
2-way in-wall speaker
technical features
Diamond dome
NautilusTM tweeter with tube technology
Anti-resonance plug
Flowport
driver
1x ø25mm (1in) diamond dome
Nautilus tweeter with tube technology
1x ø180mm (7in) Continuum diaphragm bass-midrange driver with anti-resonance plug
Frequency range (-6dB)
35Hz - 35kHz
Recommended amplifier power
120W
sensitivity
89dB
Nominal impedance
8Ω
Frame (height)
411mm
Frame (width)
247mm
Cutout (height)
395mm
Section (width)
231mm
Protrusion
8mm
Weight
3.5kg
