only subwoofer
In the Elac Varro series, the Elac DS1000-GB subwoofer is one of the absolute top subwoofers. Precise, concise, fast, breathtaking depth and dynamics. The DS1000 can also be controlled with the app and, if desired, you can operate it wirelessly with the NAVIS transmitter.
Elac DS1000-GB subwoofer works with 2x 10" dual drivers and produces a breathtakingly brutal and balanced low tone. In the new Elac Varro series, the DS1000-GB is the entry into the top class of subwoofers.
Experience the incredible sound of the legendary Dual Reference Series subwoofer. This single subwoofer can provide your sound system with consistent, precisely tuned, crystal clear bass. The Elac DS1000-GB features state-of-the-art technology and delivers a clean, balanced low-frequency experience with two powerful bass drivers. The subwoofer delivers excellent linearity, producing tight and precise bass with minimal distortion. Perfectly tuned for the most demanding films or music.
- Powerful BASH amplifier with dual 4-channel DSP and 32-bit DACs
- Auto EQ system
- App control
- 36mm case
- internally damped and internally braced eliminates unwanted resonances
- High-gloss painted housing
- Aluminum sandwich driver
- Integrated wireless receiver for wireless operation with Navis transmitter (accessory)
Elac DS1000-GB subwoofer offers a very advanced driver design.
High Excursion (HEX) surround technology allows for greater extrusion and less distortion. However, to facilitate the additional movement, longer voice coils were required. This meant that the aluminum sandwich technology was too heavy. To improve efficiency, the drivers were designed with cutouts placed in the paper cone before being bonded to the aluminum cone.
The Elac DS1000-GB has two separate woofers mounted opposite each other. This configuration, along with the increased amplifier power, not only increases SPL but also significantly reduces cabinet vibration.
The cast backrest provides stability under load, and a large magnet completes the ingeniously designed driver.
Reference subwoofer with Bash amplifier
The discrete implementation of these tracking amplifiers allows for maximum voltage swing and delivers all required power and additional dynamic performance across the woofers' entire operating range.

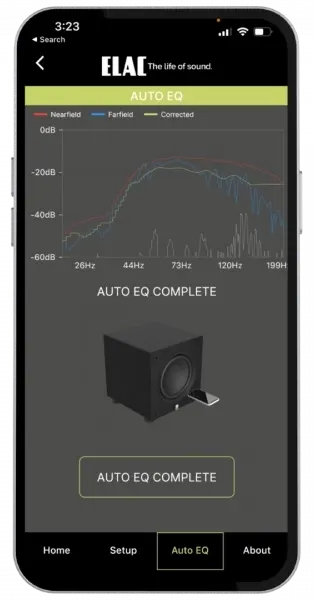

Auto EQ and improved app control
Subwoofer placement can be a serious challenge. This is because they are usually placed in corners or hidden next to sofas, causing reflections, peaks or complete cancellations. The principle of ELAC Auto-EQ is to remove the effect of room by taking a near-field measurement and comparing it with a far-field (listening position) measurement.
This allows a greater degree of freedom to place the subwoofer where it meets all requirements. You can calibrate the Elac DS1000-GB subwoofer with the 3rd generation "Sub Control 3.0" app with auto-EQ room correction. From now on, the app also allows you to set up more than one subwoofer.
Technical data of the Elac DS1000-GB subwoofer
Type | active subwoofer |
principle | closed |
Rated/music power (W) | 1000/2000W |
Transmission range (Hz) | 18Hz to 150Hz
15 Hz to 150 Hz (InRoom) |
Crossover frequency (Hz) | 40Hz to 150Hz |
Entrances | RCA line level, speaker level
USB (Firmware Updates) 12 volt trigger Ethernet (RJ45) IP control XLR Balanced (Left&Right) |
Maximum output level, SPL | 115dB |
Stand-by circuit | <2.0 watts |
Amplifier technology | BASH amplifier |
App control | iOS and Android |
Dimensions (HxWxD) | 371x429x370mm |
Weight | 32.4kg |
Control your Elac DS1000-GB subwoofer wirelessly with the Navis transmitter. The optimal subwoofer solution for rooms where you cannot lay a subwoofer RCA cable.
Technical data of the NAVIS transmitter
Height x width x depth: 39 x 92 x 94 mm
Weight: 0.2kg
Type: 2.4 uncompressed audio, CD quality
Transmission range: <5Hz … 22.1 kHz
Inputs: 2 x RCA (Right / Left)
Supply voltage: 7.5V DC
Accessories included: power supply
