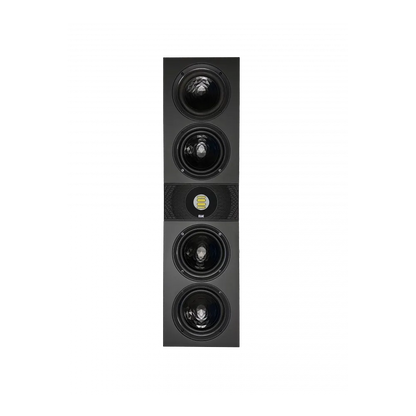

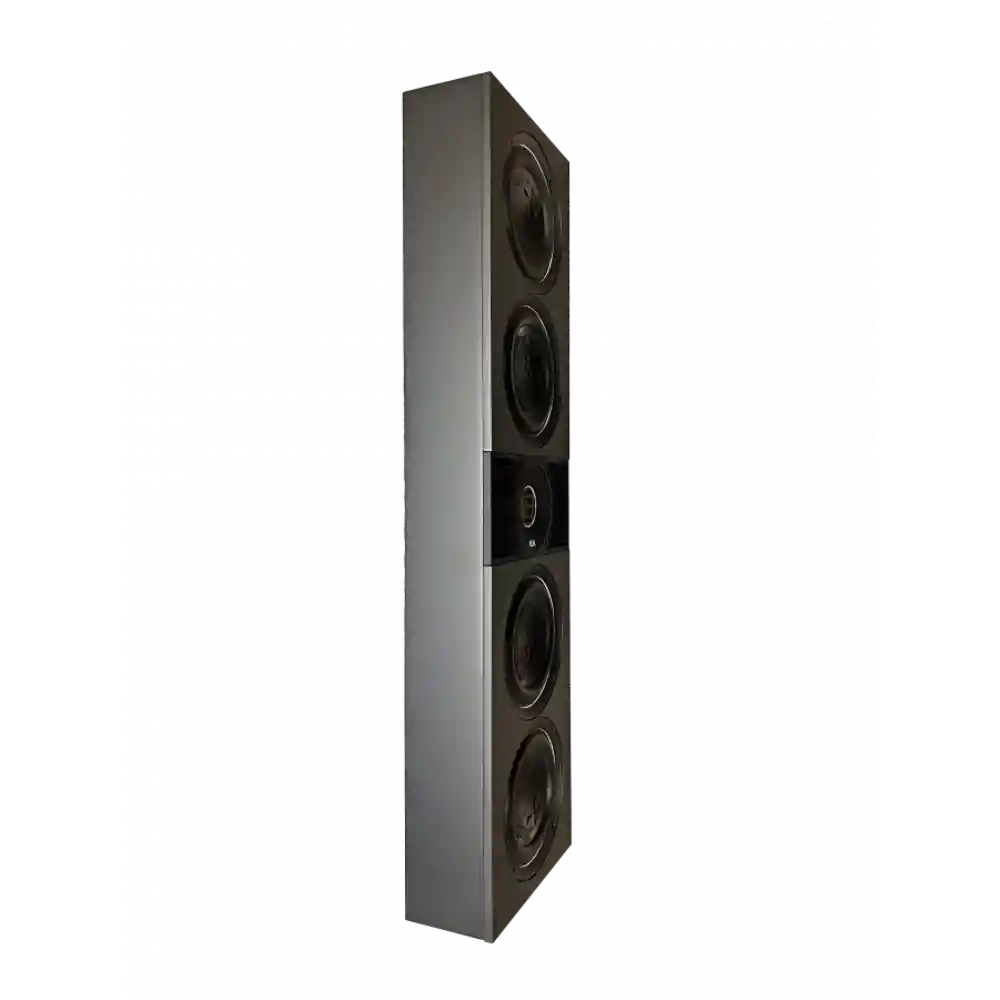

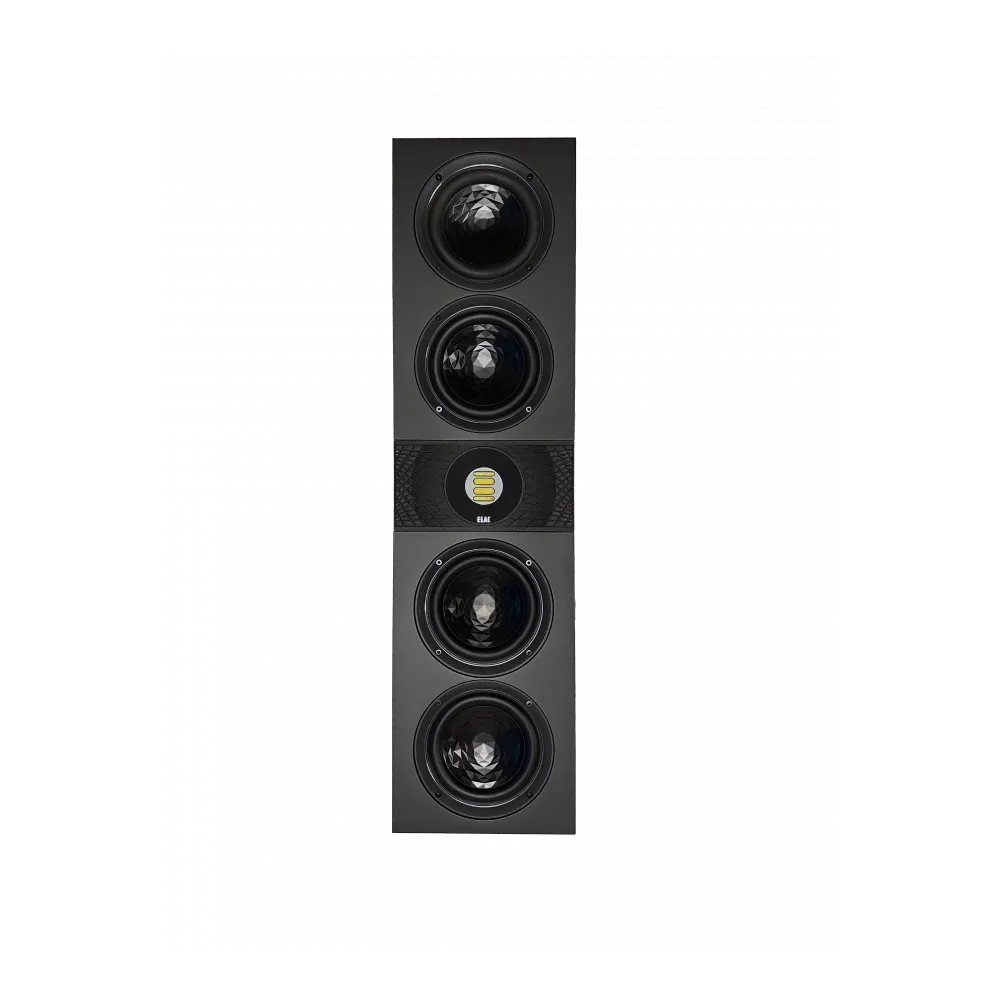

ELAC Vertex Series 3 OW-VJ63M

ELAC Vertex Series 3 OW-VJ63M

Introduction: The ELAC Vertex Series 3 OW-VJ63M is a high-performance in-wall loudspeaker specifically designed for the custom audio sector. The Vertex III Custom Series brings the renowned sound signature of ELAC's home audio loudspeakers to the world of bespoke installations. With its high flexibility and performance, this loudspeaker series is ideal for demanding audio setups and home cinema systems.

Core technologies: The Vertex III OW-VJ63M combines the latest ELAC technologies for an incomparable sound experience:

• JET 5 tweeter: Equipped with the legendary JET 5 tweeter, which uses the Air Motion Transformer principle (AMT). The tweeter offers an extended frequency response up to over 50 kHz and ensures the highest precision and clarity in sound reproduction.
• AS technology: The crystal membrane of AS technology ensures increased rigidity and excellent large-signal behavior. The aluminum sandwich membrane ensures powerful bass and an extended frequency range that rolls off smoothly.

Installation flexibility: The ELAC Vertex Series 3 OW-VJ63M offers versatile mounting options:

• Wall mounting: Thanks to the four recessed keyhole inserts, the speaker can be mounted both horizontally and vertically. Cables can be routed through special channels to enable flush wall mounting.

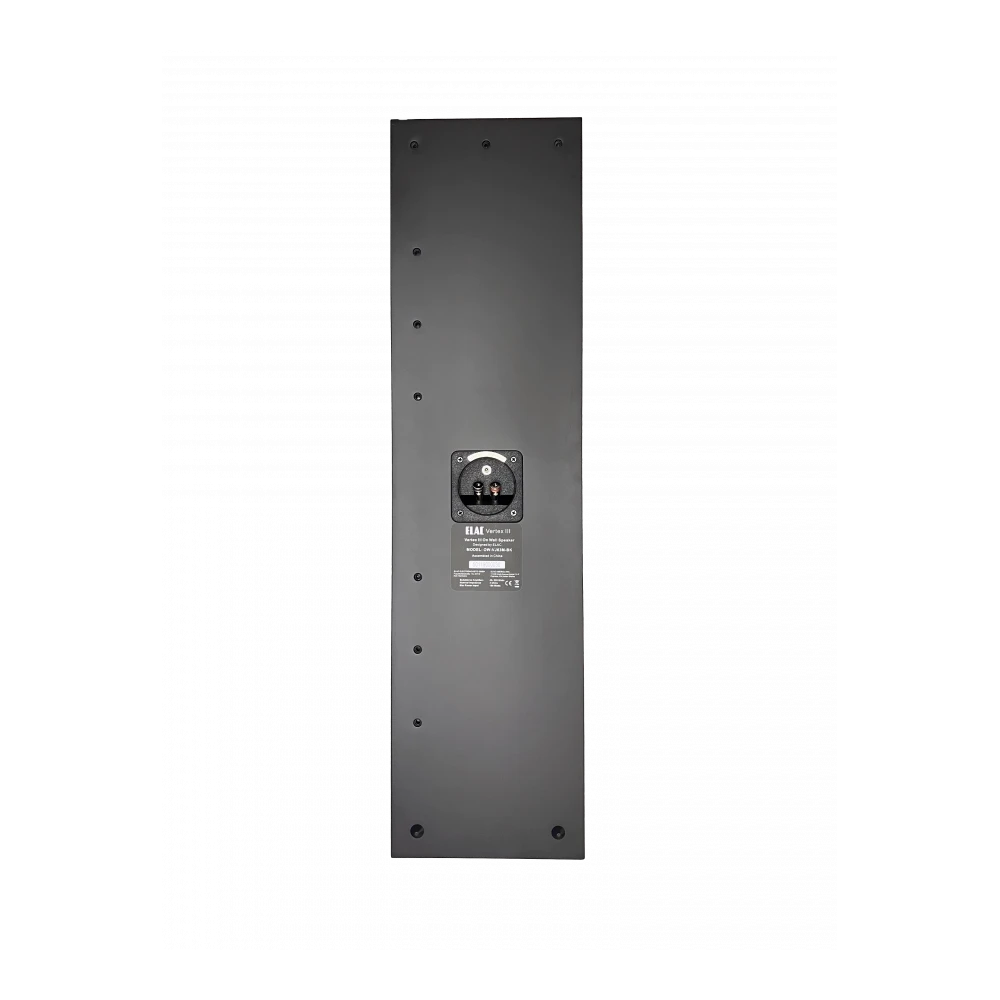

• Tuning: A switch on the back of the housing allows the sound radiation to be adjusted depending on the mounting position. This ensures optimal sound quality, regardless of how the speaker is installed.

Technical specifications:

• Type: 2 1/2-way, closed housing
• Tweeter: JET Folded Ribbon
• Woofer: 2 x 6”
• Crossover frequency: 450 / 2,400 Hz
• Frequency range: 42 to 50,000 Hz
• Sensitivity: 88 dB at 2.83 V/1 m
• Recommended amplifier power: 40 to 200 watts
• Nominal/peak power: 120/160 watts
• Nominal impedance: 4 ohms
• Finish: Black Baffle
• Grille: Black fabric grille
• Wall mounts: Included
• Dimensions: Height: 852 mm, Width: 248 mm
• Installation depth: 97 mm

Product highlights:

• Optimal adjustment through tuning switch for different mounting positions
• Can be flexibly mounted in horizontal or vertical position
• crystal membrane for precise bass and extended frequency range
• JET 5 tweeter for maximum sound precision and clarity

Experience premium audio quality with the ELAC Vertex III OW-VJ63M and design your listening environment with outstanding flexibility and performance.
