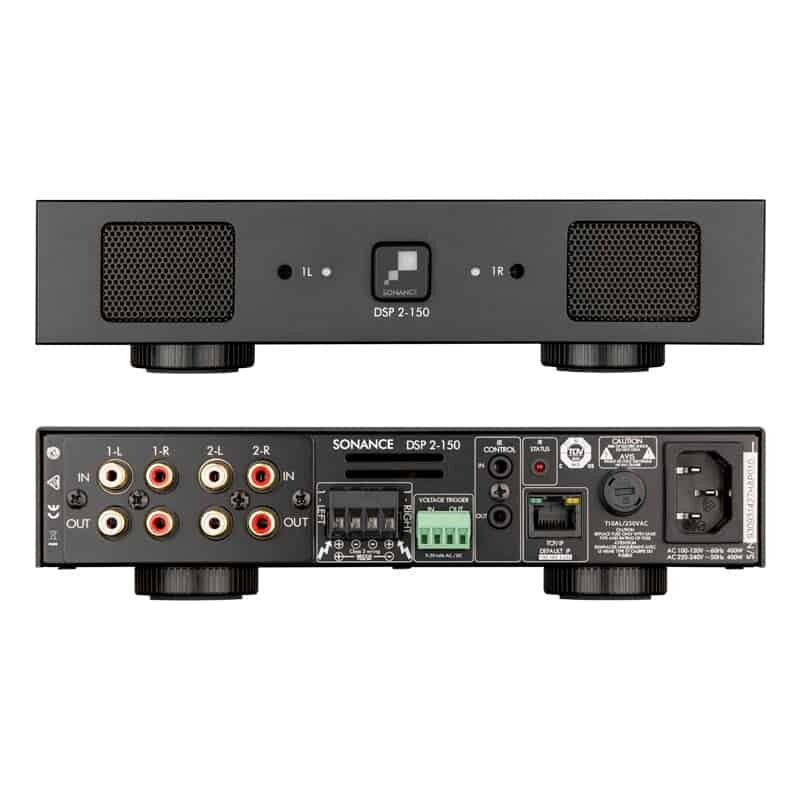

Sonance Sonamp DSP 2-150 Mk II
Couldn't load pickup availability
The reduced power consumption of the Sonance amplifiers and the compact dimensions ensure optimal use of space in the 19" rack. Fanless design with 93% efficiency, so rack mounting is possible without gaps. Mono bridgeable for more power if necessary. Other practical features: Line inputs with loop outputs for further connection, signal-controlled switching on or 12 volt trigger.
Sonance Sonamp DSP 2-150 Mk II
The heart of every Sonance DSP amplifier is a powerful 24bit/96k digital-to-analog converter that can process a full 4608 Kb of audio data per second. Other amplifiers often have limitations in processing power and thus limit the listening pleasure to only 1411Kbps. The new Sonance DSP amplifiers, on the other hand, deliver full transparency in the sound, no matter what is being listened to, from MP3 to high-resolution audio files. Every Sonamp DSP is strong and fit for the future.
The Sonance DSP amplifiers can be controlled with a trigger voltage of 3 to 30 volts and thus ensure the interaction of, for example , Bang and Olufsen devices that have a low trigger voltage.
Crestron, Savant and Control4 drivers are available.
IR control: Infrared control commands are available.
IP Control: Network control is available.
The small DSP 2-150 already delivers two times 224 watts at 4 ohms, both channels operated at the same time. This performance from half a 1U housing makes it a universal gaming partner for many occasions. These stereo power amplifiers with their built-in, universal crossover even allow subwoofer satellite combinations or high-quality multi-way speakers to be actively operated.
This series of digital amplifiers has a more space-saving design than all previous ones. The design allows two 150-watt/channel amplifiers to be accommodated in a 19" height unit.
Up to 68% less space is required for amplifiers in the rack, and the impressive 93% energy efficiency means that the other devices in the cabinet do not heat up additionally.
Impressive sound in any environment
The Sonance DSP amplifiers all have SONARC (Sonance Advanced Room Correction), which provides hundreds of equalizer presets optimized for Sonance speakers. No additional hardware or software is required. SONARC also offers further customization options via a 10-band equalizer. This allows the specialist dealer installing it to calibrate the loudspeaker system and further optimize the sound.
SONARC TAB 1 – GENERAL SETTINGS
SONARC TAB 2 – IN/OUT SETTINGS
SONARC TAB 3 – EQ SETTINGS
| assignment | 2-channel amplifier, DSP/EQ amplifier |
|---|---|
| manufacturer | Sonance |
| channels | 2 |
| 8 ohm rms | 150 watts |
| 4 ohm rms | 224 watts |
| mono-bridged | 473 watts |
| eq | Yes |
| dsp | Yes |
| subsonic filter | Yes |
| ethernetrs-232 | Yes |
| ground lift | No |
| autosensing | Yes |
| trigger in | Yes |
| trigger out | Yes |
| priority 2 input | Yes |
| width | 219mm |
| height | 44mm |
| hey | 1 |
| depth | 427mm |
| weight | 5kg |
